The Future of High-Volume Production: Compact CNC Machines

High-volume no longer means massive machines or sprawling floor plans. With the right CNC platforms, you can deliver throughput, precision, and scalability—without overcommitting on space or capital.

At DiPaolo, we’ve deployed the Kitamura HX250 to validate exactly that. Alongside models from CMZ and Hwacheon, these compact platforms prove that footprint and output aren’t correlated the way they used to be.

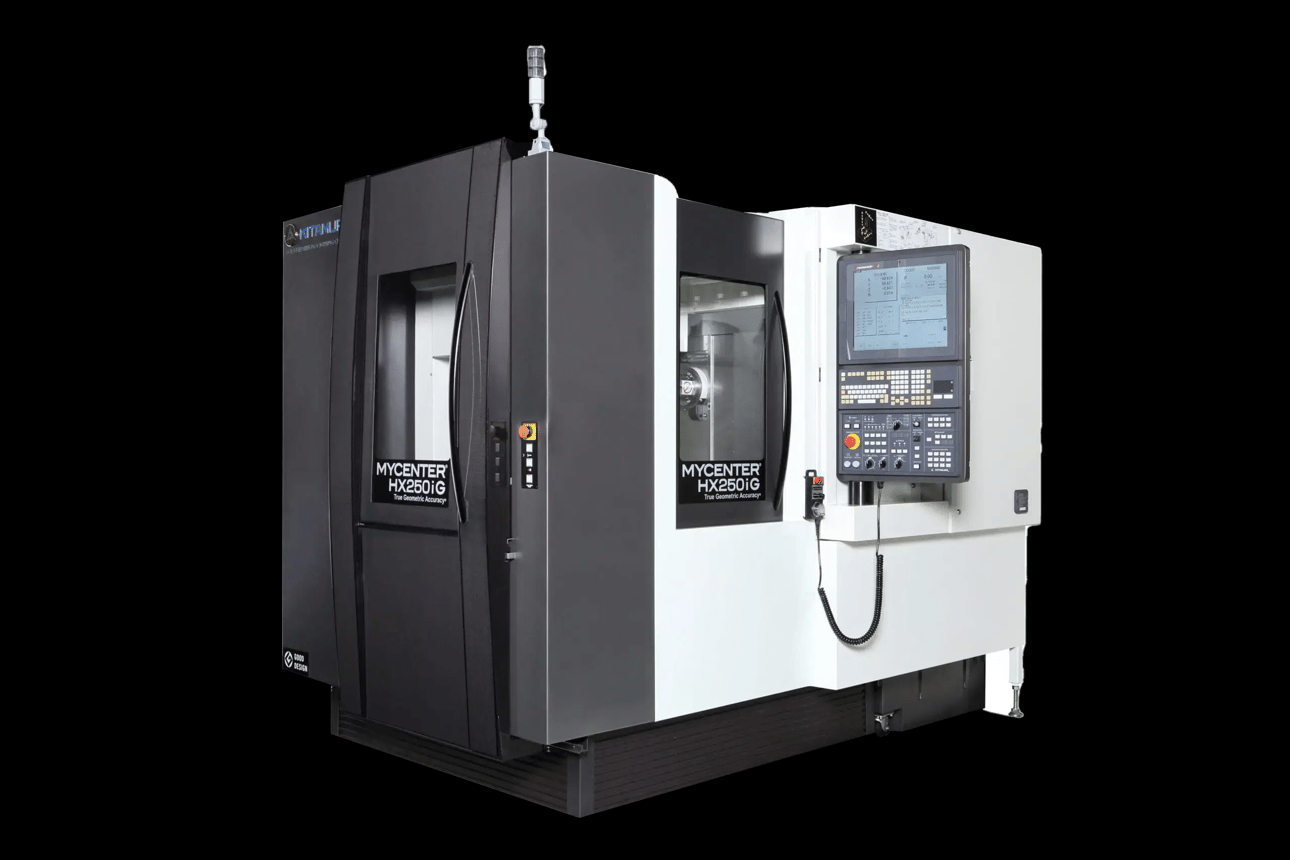

Kitamura HX250: Core Platform for Scalable Production

The HX250iG horizontal machining center is purpose-built for shops that need high spindle utilization and flexibility in how they grow capacity. Key specs:

• Axis travels: 305 x 305 x 330 mm (X/Y/Z)


• Spindle: 15,000 rpm standard, 30,000 rpm optional; direct drive eliminates belt slippage


• Tool capacity: Standard 40-tool ATC, expandable in the field to 102 tools


• Pallet changer: Optional 10-station APC, field-installable without machine teardown


• Feed rates: 60 m/min (2,362 ipm) rapid feed in all axes


• Repeatability: ±0.001 mm


• Control: Kitamura Arumatik-Mi, optimized for responsive cycle control and high-speed machining

From a production engineering standpoint, what’s most valuable isn’t just the performance, it’s the upgrade path. Unlike machines that require requalification after a hardware expansion, the HX250 can be approved under PPAP early, with tool changers and pallet systems added later, without redoing validation.
This de-risks CapEx planning. You can align machine capability to real production volume, not just forecasts.

CMZ: Concurrent Turning for Short Cycle Times

CMZ’s TTL Series brings simultaneous machining to compact turning platforms. It’s ideal for high-mix, high-throughput environments where cycle time per part is the primary KPI.

• Spindles: Twin 12,000 rpm synchronous spindles, both beltless
• Turrets: Two 12-station turrets, both with live tooling and Y-axis capability
• Superimposed machining: Two tools cutting on the same spindle simultaneously
• Cycle optimization: Twin spindles allow parallel loading/unloading and full overlap of operations
• Automation: Integrated gantry loaders, part stockers, and bar feeders available

This architecture eliminates idle time between ops and reduces labor per part significantly, key for lights-out or lightly-staffed overnight shifts.

Hwacheon: Heavy-Duty Milling with Smart Integration

Hwacheon fills a different niche: when you need high material removal rates, thermal stability, and built-in automation from a vertically integrated builder.

• Spindles: In-house built; oil-cooled for thermal control


• Castings: Single-piece Meehanite cast bases for rigidity and vibration dampening


• Control: Hwacheon AI Control Suite enables adaptive feed control, thermal compensation, and real-time monitoring


• Smart Maintenance: Built-in diagnostics and predictive alerts based on sensor feedback


• Model highlights:


  • i2 Series: Vertical machining centers optimized for fast aluminum and steel processing

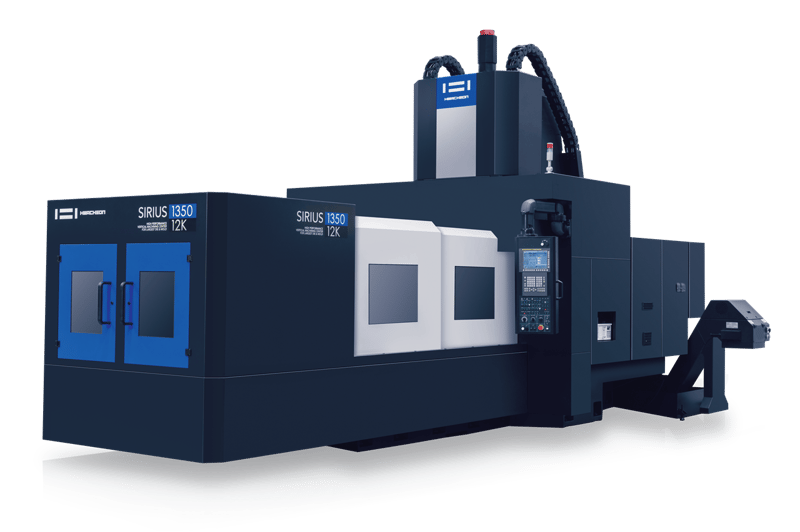

  • Sirius Series: Double-column machines for large, high-precision workpieces

Hwacheon’s vertical integration lets them tune machines holistically; spindle, casting, and control systems are engineered to work together. That matters when your tolerances can’t drift and your machines must hold performance over thousands of cycles.

Why Compact Doesn’t Mean Compromised

The old assumption was simple: bigger machines equal more capability. That’s no longer true. Compact CNC platforms today deliver the performance, repeatability, and throughput once limited to large-footprint equipment. Here’s why:

1. Throughput per square foot

Machines like the Kitamura HX250 offer full horizontal machining center capabilities, pallet changers, 100+ tool capacity, high spindle speeds, within a footprint under 10 feet wide. You get more productivity per square meter, which is critical as space constraints tighten.

2. Precision at scale

Compact platforms aren’t lighter in tolerance. The HX250 maintains ±0.001 mm repeatability. CMZ TTL spindles and turrets operate concurrently without sacrificing cut stability. These aren’t entry-level specs, they’re production-grade.

3. Shorter chip-to-chip times

Smaller axes and tighter layouts often mean faster positioning, tool changes, and part handling. With optimized control systems like Arumatik-Mi and CMZ’s TTL firmware, you cut idle time between cuts to the bare minimum.

4. Modular growth without downtime

Compact machines like the HX250 are designed for in-field expansion. You can add pallet stations or tool changers without requalifying the machine or halting production for days. This modularity makes scaling lower-risk and faster to deploy.

5. Automation-ready design

These machine tools  don’t need retrofitting to support automation. Kitamura, CMZ, and Hwacheon all offer loader interfaces, pallet options, and integrated control support for robotics. Compact doesn’t mean manual-only.

6. Lower TCO

Smaller machines often come with lower energy consumption, easier maintenance access, and less HVAC load. Over the life of the machine, that adds up to real savings without sacrificing output.

Conclusion: Compact Machines, High-Leverage Outputs

The move to compact CNCs is not about downsizing, it’s about precision resource allocation. Kitamura, CMZ, and Hwacheon offer scalable paths to throughput that align with today’s demand volatility.

With machines like the HX250 already on the DiPaolo floor, the blueprint is clear: certify early, expand smart, automate where it pays. Compact machines, strategically deployed, will define the next generation of volume manufacturing.
